Copper Hollow Conductor

Copper Hollow Conductor is a new product line recently added to our portfolio of Copper Busbar products.

Overview

The centre ‘Copper Hollow Conductor’ can allow coolants to be passed within the busbar. This hollow feature, together with the coppers superb electrical and thermal properties offer the highest specification demanded by today’s Electrical power generation and distribution systems, with further possible applications in industrial refrigeration, and desalination systems.

Copper Hollow Conductor are available in a variety of cross-sections from complex to standard profile shapes. As with all our existing products it is available OC-ETP® material and various other copper alloys.

Product Application

Edit Content

Other applications

High energy magnets
Particle accelerators
Plasma research devices
i-on implantation units for micro circuit industry
MRI medical devices, etc.

Applications of Copper Hollow Conductor

Induction Furnace

Induction heating

Accelerator Magnet Coils

Power Generators

Switchboard/Switchgear

Heat Exchangers

Radiators

Benefits of Copper Hollow Conductor

Superior electrical and thermal conductivity
Superior structural integrity
Excellent mechanical properties
High creep resistance

Technical Information

Edit Content

Standard Industry Grades

UNS No. Chemical Composition

Electrolytic tough pitch copper

C11000 99.90 Cu 0.04 O

Silver-bearing tough pitch copper
C11300 99.90 Cu 0.04 O 0.025 Ag
C11400 99.90 Cu 0.04 O 0.031 Ag
C11500 99.90 Cu 0.04 O 0.050 Ag
C11600 99.90 Cu 0.04 O 0.078 Ag

Phosphorus-deoxidized copper
C12000 99.90 Cu 0.008 P (DLP)
C12100 99.90 Cu 0.008 P 0.125 Ag
C12200 99.90 Cu 0.02 P (DHP)

High copper alloys
C14500 99.5 Cu 0.50 Te 0.008 P
C15000 99.8 Cu 0.15 Zr
C16200 99.0 Cu 1.0 Cd
C17000 98.1 Cu 1.7 Be 0.20 Co
C17200 97.9 Cu 1.9 Be 0.20 Co
C17300 97.7 Cu 1.9 Be 0.40 Pb

Production Process

The Conductor sections are manufactured by extrusion and drawing processes. They have a shiny, smooth surface and are excellent for further machining.

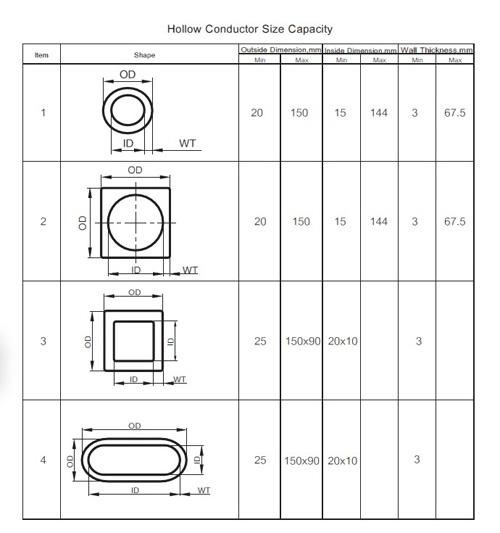

Shape And Size Range

Edit Content
