Oriental Copper’s copper anodes are made from high purity copper cathode with a purity of ≥ 99.90%. Our advanced technological process enables us to produce the finest copper anode that has perfect properties for copper electroplating.
Oriental Copper’s copper anodes are available in:
- Phosphorous Copper Anodes (Cu-DHP)
- Oxygen Free Copper Anodes (Cu-OF)
- Electrolytic Tough Pitch Copper Anodes (Cu-ETP)
Antimicrobial properties Coating
Accelerator Magnet Coils
Seawater Pipe-work Anti-fouling, etc
Use of Material
| Phosphorous Copper (Cu-DHP) | mainly used for the plating of Printed Circuit Boards (PCB) |
|---|---|
| Oxygen free Copper (Cu-OF) | for surface treatment, Lead frames and Steel |
| Electrolytic Tough Pitch (Cu-ETP) | for surface treatment, Lead frame and Steel |
| Ball & Nuggets | 20 kgs/cardboard box and 1 000 kgs/pallet |
|---|---|
| Rectangular & Oval | 1 MT/wooden box, or according to customer requirement |
Dimensions
| Oval | 80mm x 30mm or customer requirement |
|---|---|
| Flat | Thickness >10mm Width 100-260mm or customer requirement |
| Nuggets | Ø 12mm x 12mm Ø 16mm x 16mm Ø 20mm x 25mm Ø 25mm x 25mm or customer requirement |
| Sphere or Ball | Ø 16mm, Ø 25mm, Ø 28mm, Ø 38mm, Ø 50mm and Ø 55mm or customer requirement |

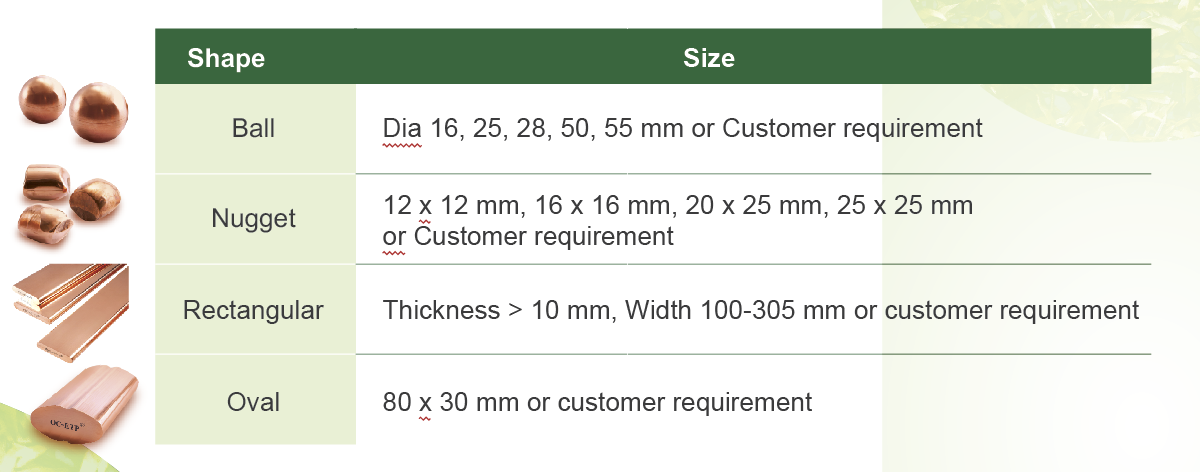

Anode Shapes & Sizes
